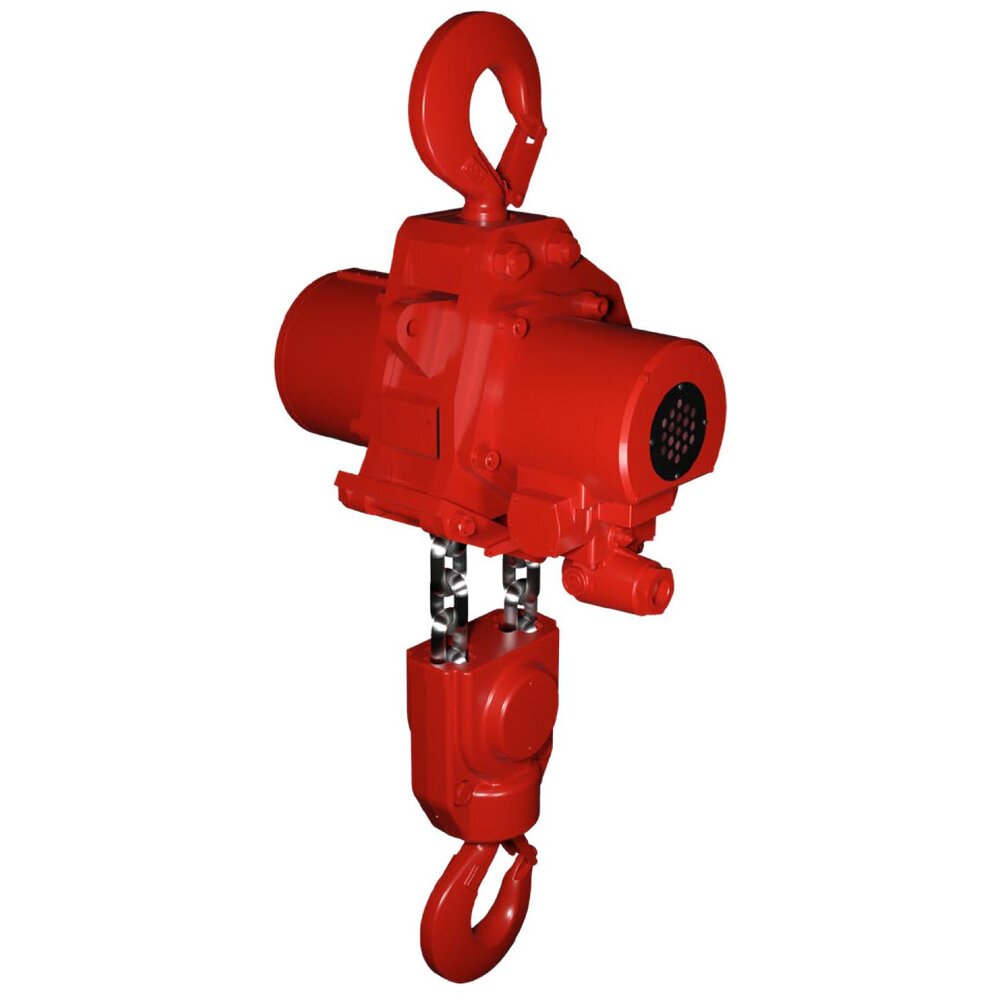

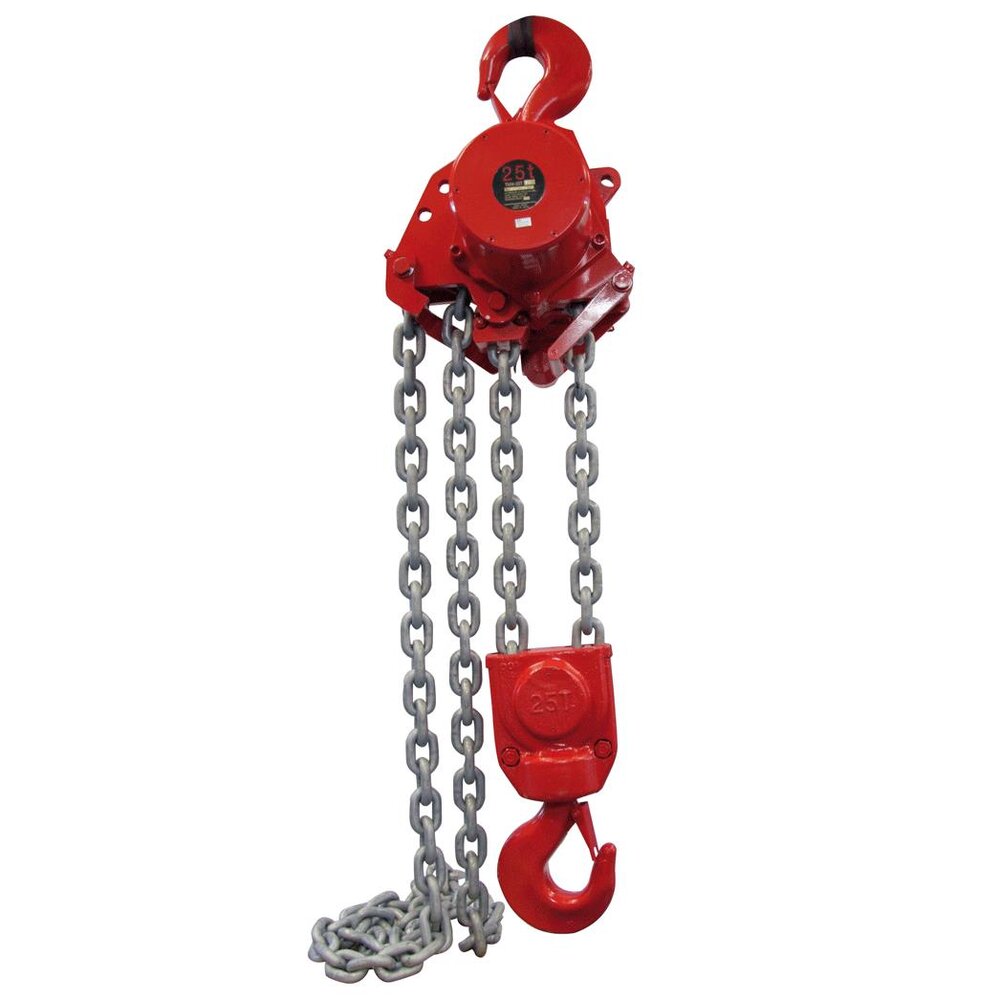

The Red Rooster TMH series air chain hoists have the highest lifting speed with the lowest headroom on the hoist market. With classification of mechanism, M3 for the TMH-25 and M2 for the TMH-30, these hoists are extremely reliable. This hoist will guarantee the continuity of your process.
Standard features:
- Precise variable speed control (cord control)
- Optimum control of the load, very precise positioning
- Main air shut off valve
- Mechanical end stop system
- Load limiter built-in without loss of headroom
- Low noise level (84 dBA)
- Working air pressure 0,4 - 0,63 MPa (4-6,3 bar)
- Piped away exhaust air
ATEX:
- According to EC Directive 94/9/EC (Ex Classification)
Recommended:
We highly recommend the use of an SMC air treatment unit. (Sold separatly).
- Kennzeichnung: nach Norm, CE-Kennzeichnung
- Standard: EN 14492-2
