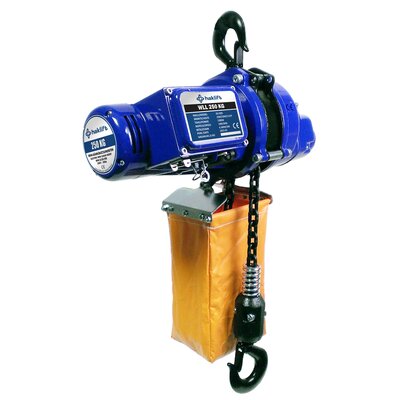

Compact and light electric hoist with aluminium body. The hoist is equipped with a chain bag and upper and lower limit switches. Longer control and power cables and chains are also available upon request.
Optional wireless remote control:
- range 50 m (unobstructed visibility)
- functions: lift, lower and emergency stop
- IP65
- operating temperature -10 - (+)70°C
- size 190 x 70 x 50 mm
- 4 x AA batteries
- Product code: SKTHMINIKAUKO
- Features: IP54
- Material: Aluminum
- Marking: CE-marked
- Temperature range: -10 - (+) 50°
- Finish: Painted, blue
DIMENSIONS
| Product | Control cable m |
Electric cable m |
Body width mm |
Body depth mm |
Body + chain min height mm |
| SKTH250MINI | 3 | 5 | 420 | 160 | 480 |
| SKTH500MINI | 6 | 5 | 420 | 160 | 480 |
| SKTH1000MINI | 6 | 5 | 420 | 160 | 500 |
| SKTH2000MINI | 6 | 5 | 456 | 214 | 675 |
SPARE PARTS
| Spare part (product code) | Description | Suitable for hoist (product code/-s) |
| KAPULA5 | Pendant control for VAVIN500MINI and SKTH_MINI | VAVIN500MINI, SKTH250MINI, SKTH500MINI, SKTH1000MINI, SKTH2000MINI |
| SKTHMINIKAAP | Control cable, length 5 m | Plug in the other end | VAVIN500MINI, SKTH250MINI, SKTH500MINI, SKTH1000MINI, SKTH2000MINI |
| VAINOSHKAAP | Control cable extension, length 10 m | Plugs in both ends | VAVIN500MINI, SKTH250MINI, SKTH500MINI, SKTH1000MINI, SKTH2000MINI |
| Also other spare parts available with a delivery time, ask our sales for more information |
