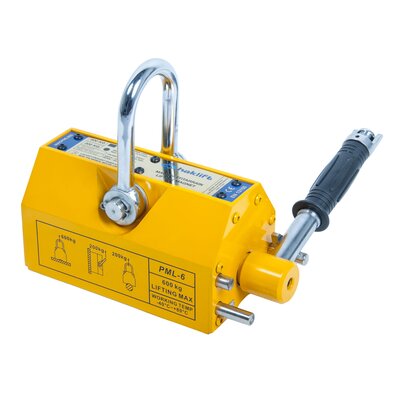

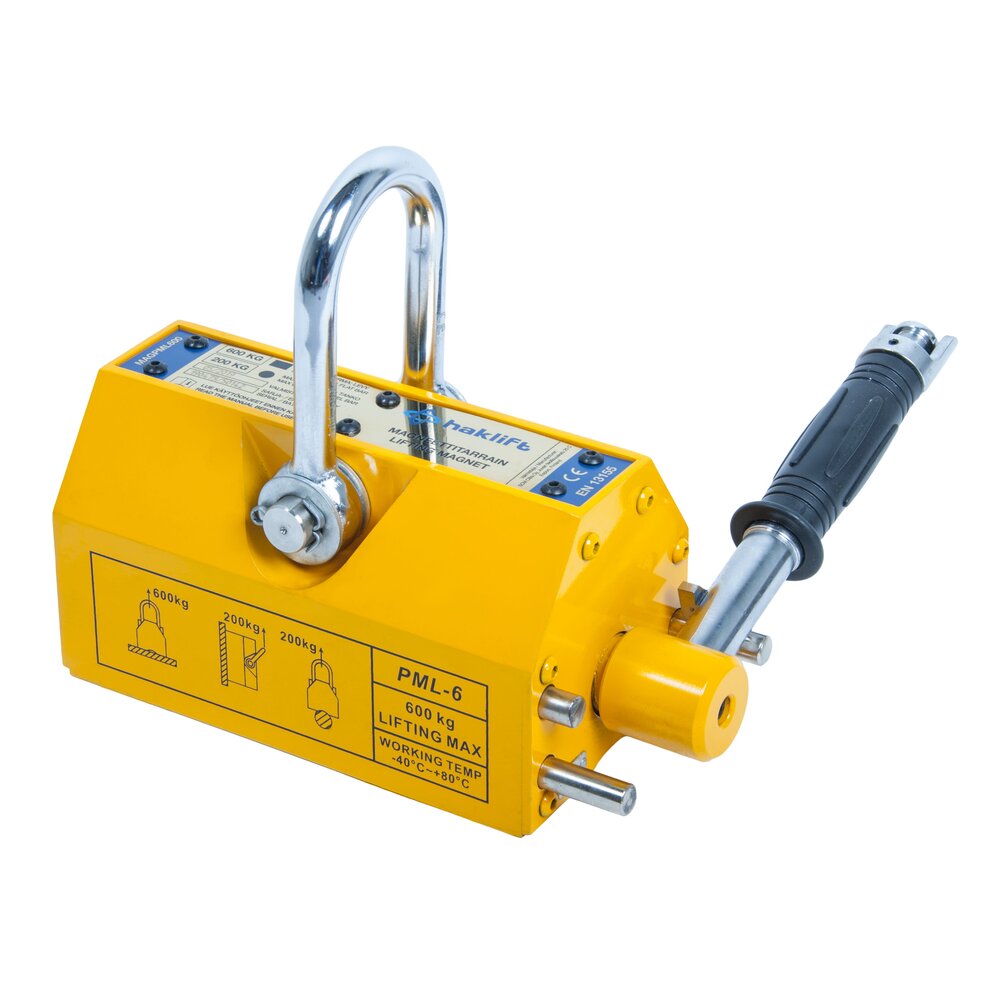

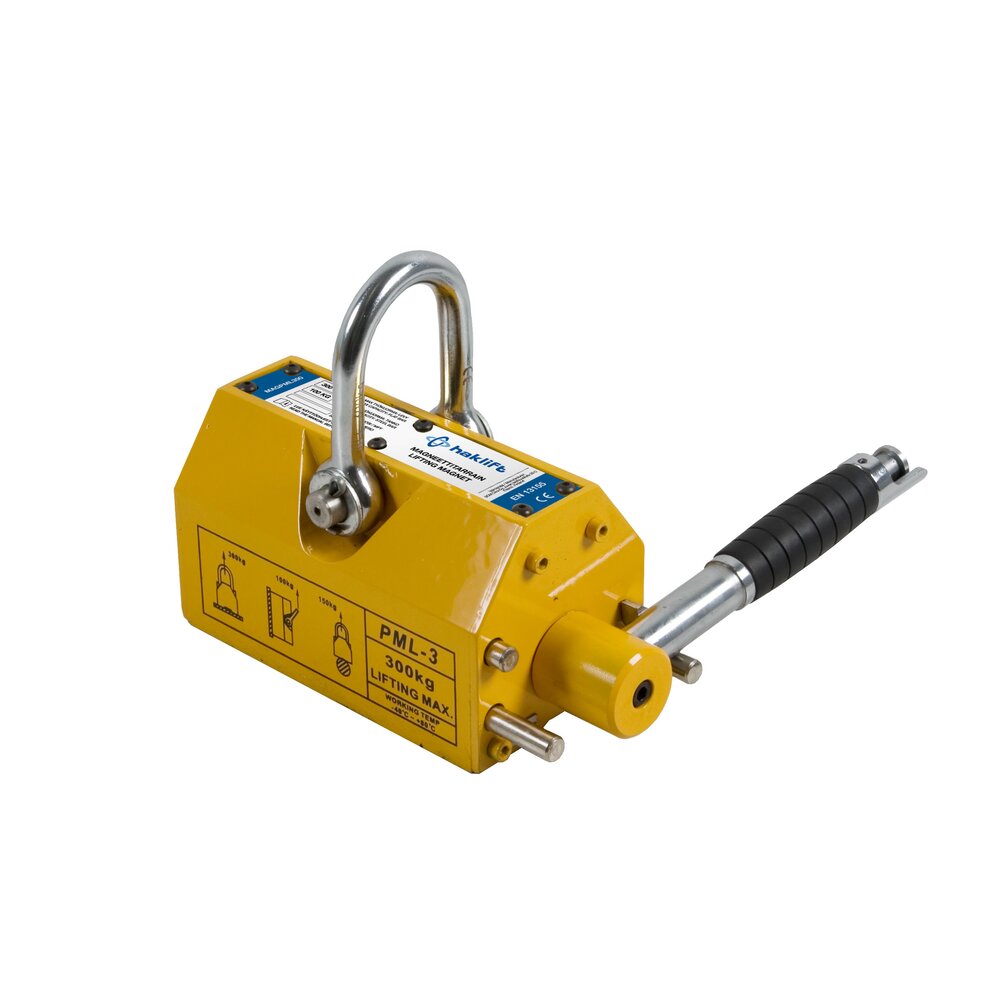

Durable magnet clamps for lifting plates, pipes and round steel bars. Small and easy to use. Due to the joint lifting eye, improved durability and stability of the item to be lifted. Rubber coated handle is comfortable to use.
Safety factors
- 100 - 300 kg clamps: 3.5:1
- 600 - 2,000 kg clamps: 3:1
- Material: Steel
- Marking: According to standard, CE-marked
- Temperature range: -40 - (+) 80 °C
- Finish: Painted, yellow
- Standard: EN 13155
- Note: Handles also available as a spare part
- Warning: Not to be heat-treated
User manual in English, Swedish, Finnish, Polish, Czech and Hungarian.
MIN. PLATE AND BAR MATERIAL THICKNESSES
| Produtc code | Min. plate thickness mm | Min. bar diameter mm |
| MAGPML100 | 30 | 55 |
| MAGPML300 | 40 | 70 |
| MAGPML600 | 50 | 80 |
| MAGPML1000 | 60 | 90 |
| MAGPML2000 | 70 | 100 |
SPARE PARTS
| Spare part (product code) | Description | Suitable for clamp (product code) |
| MAG100KAUV | Operating hand lever | MAGPML100 |
| MAG300KAUV | Operating hand lever | MAGPML300 |
| MAG600KAUV | Operating hand lever | MAGPML600 |
| MAG1000KAUV | Operating hand lever | MAGPML1000 |
| MAG2000KAUV | Operating hand lever | MAGPML2000 |
| MAGPML100NS | Lifting shackle | Incl. bolt and fasteners | MAGPML100 |
| MAGPML300NS | Lifting shackle | Incl. bolt and fasteners | MAGPML300 |
| MAGPML600NS | Lifting shackle | Incl. bolt and fasteners | MAGPML600 |
| MAGPML1000NS | Lifting shackle | Incl. bolt and fasteners | MAGPML1000 |
| MAGPML2000NS | Lifting shackle | Incl. bolt and fasteners | MAGPML2000 |
Also other spare parts available with a delivery time, ask our sales for more information
