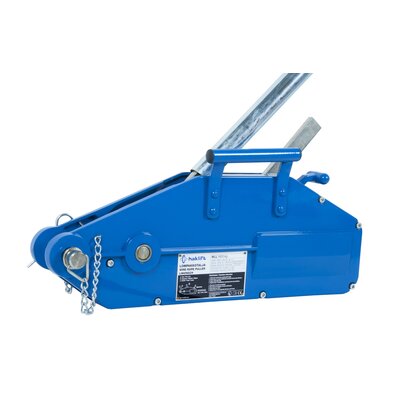

Aluminium body wire rope hoists LOABT

High quality aluminium wire rope hoist for pulling and lifting. The hoist does not have a wire drum as the wire goes through the hoist. Lifting and pulling speed is app. 3 m/min. The hoist is equipped with 20 m wire rope with a safety hook as a standard.

Show more

Product number:

High quality aluminium wire rope hoist for pulling and lifting. The hoist does not have a wire drum as the wire goes through the hoist. Lifting and pulling speed is app. 3 m/min. The hoist is equipped with 20 m wire rope with a safety hook as a standard.

  • Features: 800/1600/3200 kg models equipped with a carrying handle
  • Material: Aluminum
  • Marking: According to standard, CE-marked
  • Finish: Painted, blue
  • Standard: EN 13157
  • Note: Other wire rope lengths are also available upon request.
  • Safety factor: 5:1

User manual in English, Swedish, Finnish, Polish, Czech and Hungarian.

WEIGHTS

Product code Hoist kg 20 m wire rope kg Total kg
LOABT800 6,6 7,2 13,8
LOABT1600 12,5 12,1 24,6
LOABT3200 23,4 22,8 46,2
LOABT5400 61 37,5 98,5




WIDTH OF ANCHOR POINT


Product code Width mm
LOABT800 30
LOABT1600 40
LOABT3200 52
LOABT5400 63


SPARE PARTS

Spare part (product code) Description Suitable for hoist (product code)
LO80VAI20 Replacement wire rope 0,8 t | 20 m with latch hook LOABT800
LO16VAI20 Replacement wire rope 1,6 t | 20 m with latch hook LOABT1600
LO32VAI20 Replacement wire rope 3,2 t | 20 m with latch hook LOABT3200

LO08SOKKA Action (forward) lever's overload protection/shearing pin LOABT800
LO16SOKKA Action (forward) lever's overload protection/shearing pin LOABT1600
LO32SOKKA Action (forward) lever's overload protection/shearing pin LOABT3200
LO54SOKKA Action (forward) lever's overload protection/shearing pin LOABT5400

LOABT800VAR Operating hand lever  LOABT800
LOABT1600VAR Operating hand lever  LOABT1600
LOABT3200VAR Operating hand lever  LOABT3200

Also other wire rope lengths and spare parts available with a delivery time, ask our sales for more information
