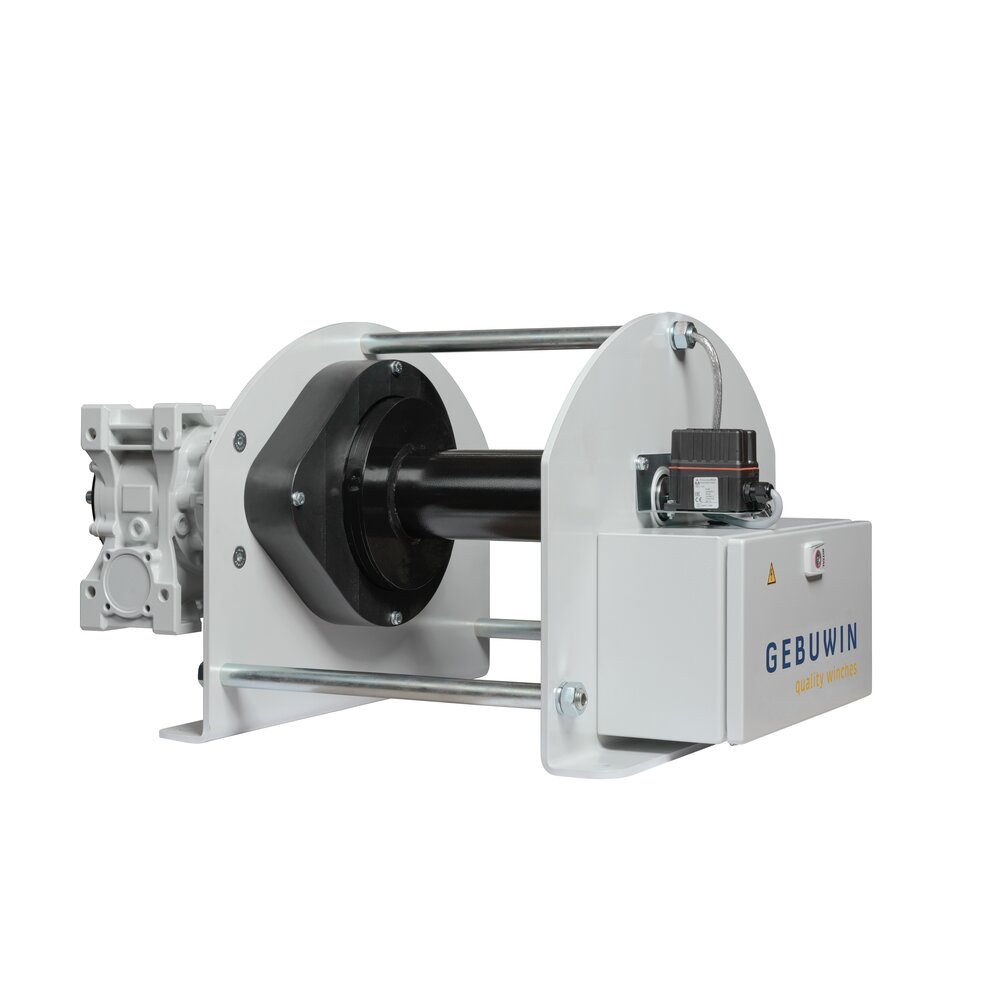

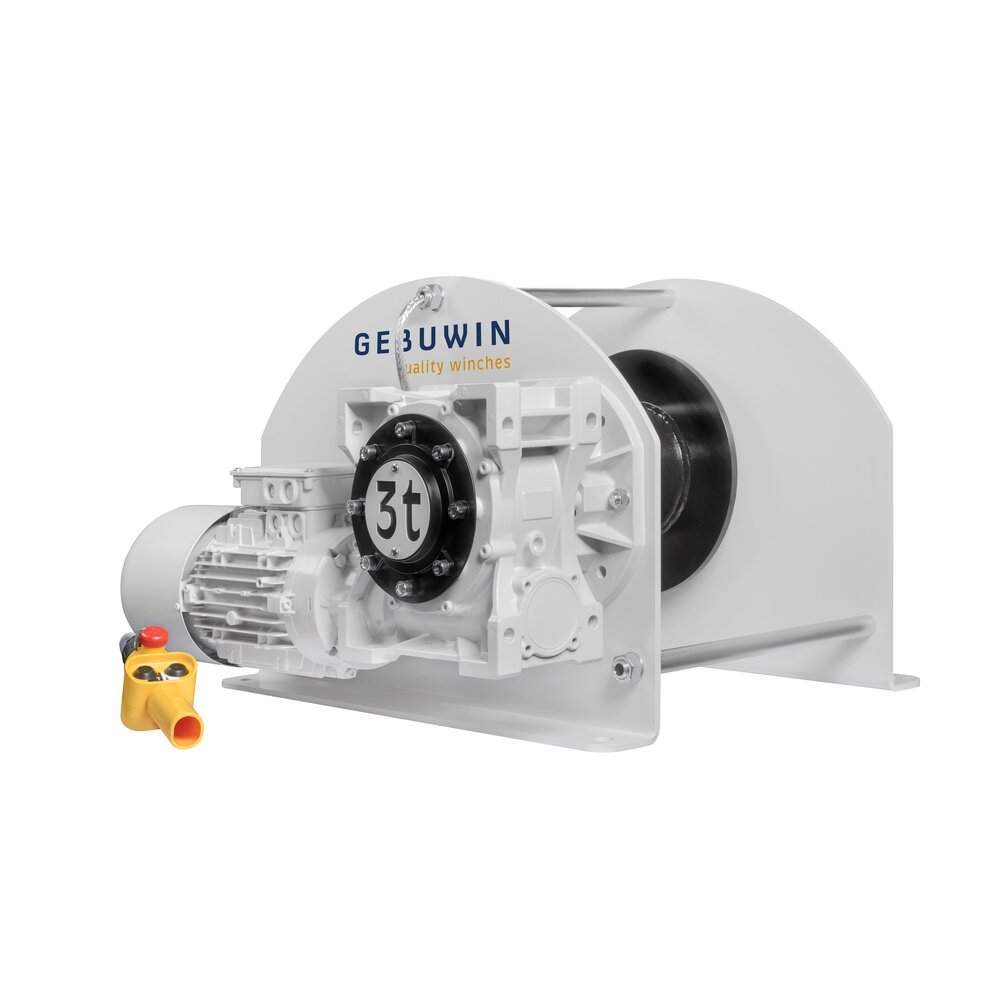

Electric winch for pulling and lifting with a powerful three-phase motor. It's budget-friendly and strong in its work.
- winch suitable for lifting (with included limit switch)
- maintenance free bearings
- protection classification IP54, insulation class F
- standard overload protection as from 1000 kg
- powerfull three-phase motor for multirange voltage:
230 – 400V / 50 Hz - three phase

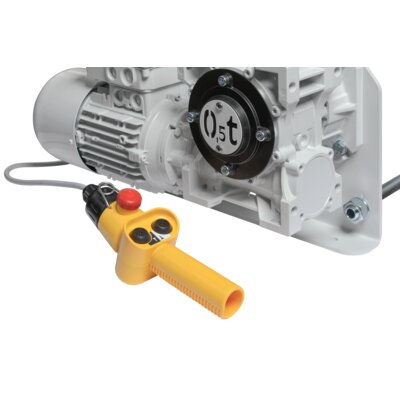

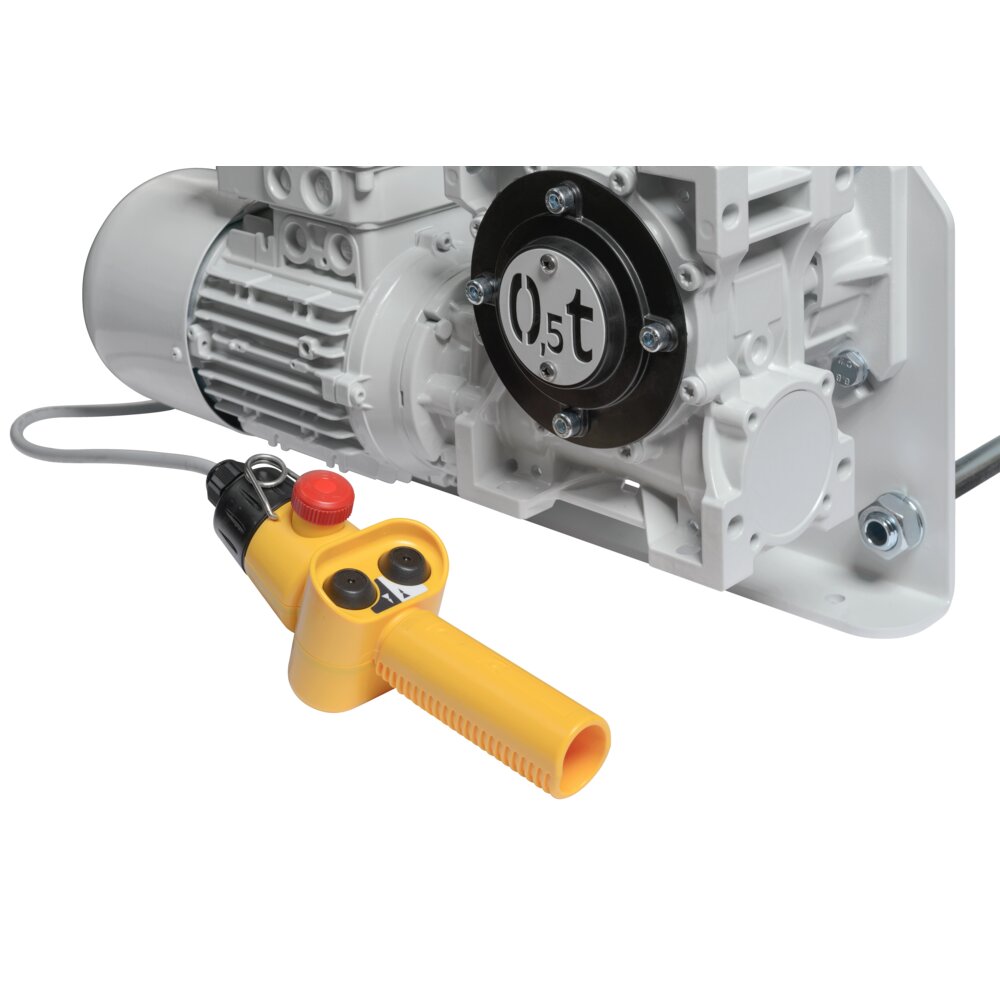

480V / 60 Hz (torque -20%, speed +20%) - 1 speed pendant control with 1m cable
- standard 2 meter power cable incuding 16A CEEplug
- 1 layer of paint
Options:
- for pulling applications (without included limit switch)
- pressure roller (PR)
- grooved drum (GD)
- 2 drum compartment (2D) or multiple up to 8 (XD)
- external limit switch (EL)
- protection classification IP55 (IP55)
- Material: Steel
- Marking: CE-marked
- Finish: Painted, light grey
- Note: Steel wire ropes must be ordered separately
