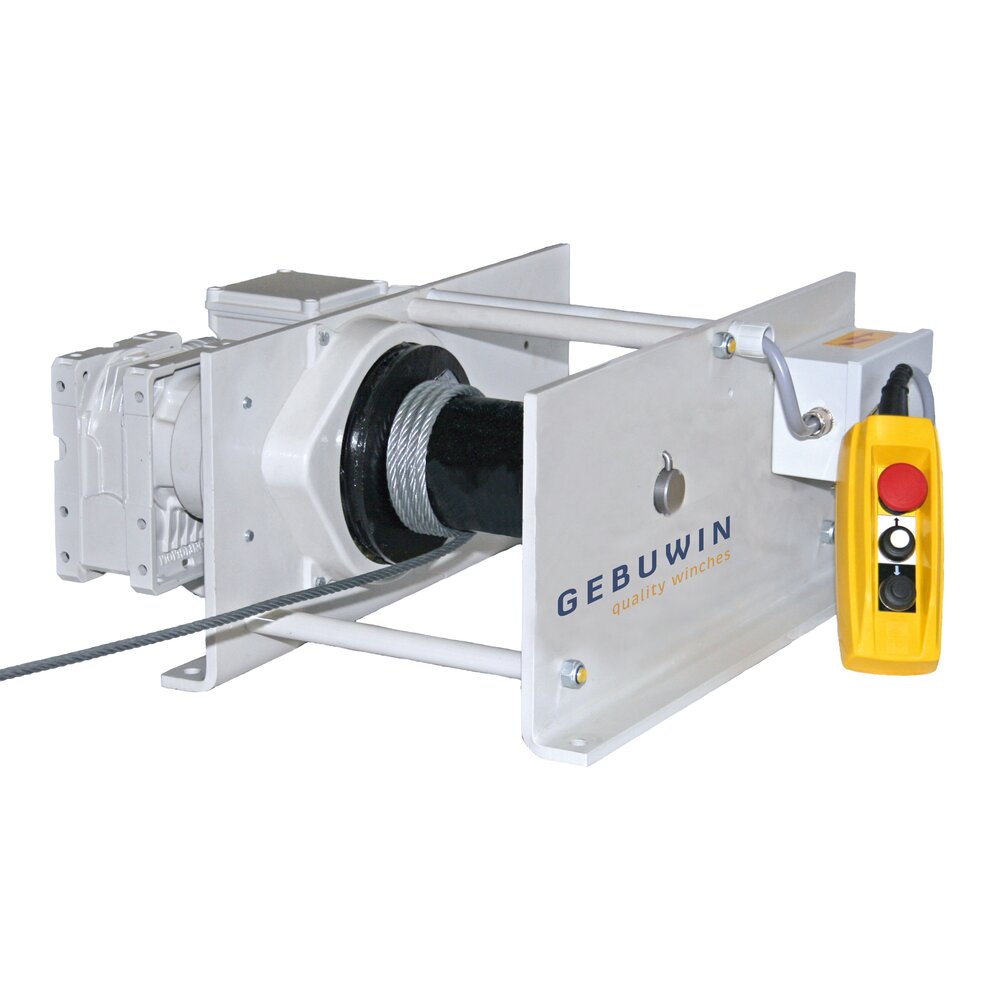

Electric EW Winch 125-3200 kg

This electric winch is part of Gebuwin’s well-known product range. A very robust and safe winch. This winch is suitable for both lifting and pulling and has an IP55 rating. It is a real industrial winch with its high FEM values of at least 1CM or higher. Strong workmanship, robust efficient winch

Show more

Product number:

This electric winch is part of Gebuwin’s well-known product range. A very robust and safe winch. This winch is suitable for both lifting and pulling and has an IP55 rating. It is a real industrial winch with its high FEM values of at least 1CM or higher. Strong workmanship, robust efficient winch that is very friendly in use.


  • winch suitable for lifting (with included limit switch and low voltage control)
  • available in 400V three phase
  • maintenance free ball bearings
  • protection classification IP55, insulation class B
  • standard overload protection starting from 1000 kg
  • standard 1 meter pendant control switch
  • operation mode S3-40% - 120 c/h
  • 1 layer of paint


Options:

  • for pulling applications (without included limit switch and low voltage control)
  • available in 230V single phase
  • increase of cable storage per 10 m up to 90m
  • grooved drum (GD)
  • multiple cable drum compartments (XD)
  • disengaging clutch (except for 125 kg model)
  • wall mounted control switch
  • low voltage control 42 V control
  • double speed
  • radio control (RC)
  • frequency control
  • protection classification up to IP66
  • ATEX certified (EX)

  • Material: Steel
  • Marking: CE-marked
  • Temperature range: - 20°C up to + 40°C
  • Finish: Painted, light grey
  • Note: Steel wire ropes must be ordered separately
